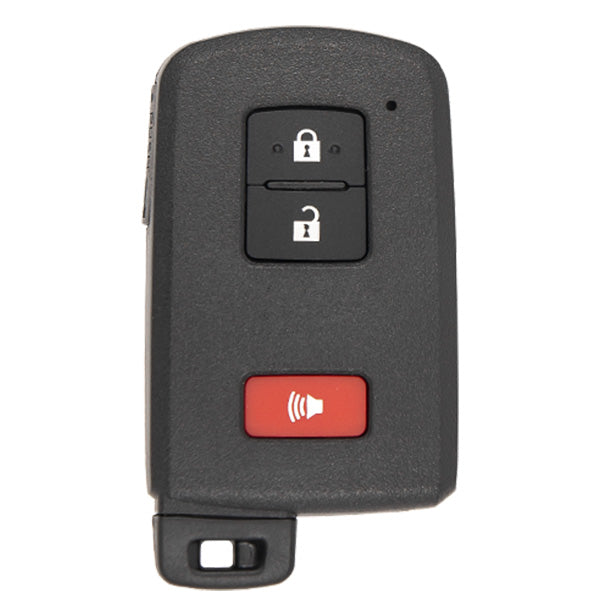

2012-2019 Toyota / 3-Button Smart Key / HYQ14FBA / G Board 0020 (Aftermarket)

Price Includes Programming, new Battery and Emergency key cut

Price are subject to change at any time

• Brand New Aftermarket
• FCC ID: HYQ14FBA
• IC: 1551A-14FBA
• Board: G Board 0020
• Frequency: 315 Mhz
• Battery: CR2032
• Buttons: Lock, Unlock, Panic
• Emergency key included: K-TOY-EM36
• ILCO Look-Alike™ available here: PRX-TOY-3B10
• Replaces PN: 89904-52290, 89904-47520

Compatible with the following:

• 2012 – 2019 Toyota Prius C
• 2016 – 2017 Toyota Prius V
• 2015 – 2018 Toyota RAV4
• 2016 – 2018 Toyota RAV4 HV

NOTE: These remotes need to added as “Add a Key” after the OEM key

Important: When you are ready to program this key please hold the key right next to the Push to Start button for at least 30 seconds.

Follow the steps How to Unlock this Key:

1. First press and hold the 1, 2, and 3 buttons at the same time (according to the order shown in the following figure), after the indicator is on, release the 3rd button.
2. Keep pressing the 1st and 2nd buttons. After the light is off, press the 3rd button again. Then the light is on and release the 3rd button.
3. Repeat the second step 10 times or more until the indicator light flashes continuously, then you can release 3 buttons.
4. After the indicator light stops, the smart card is unlocked and can be used as a new card.
