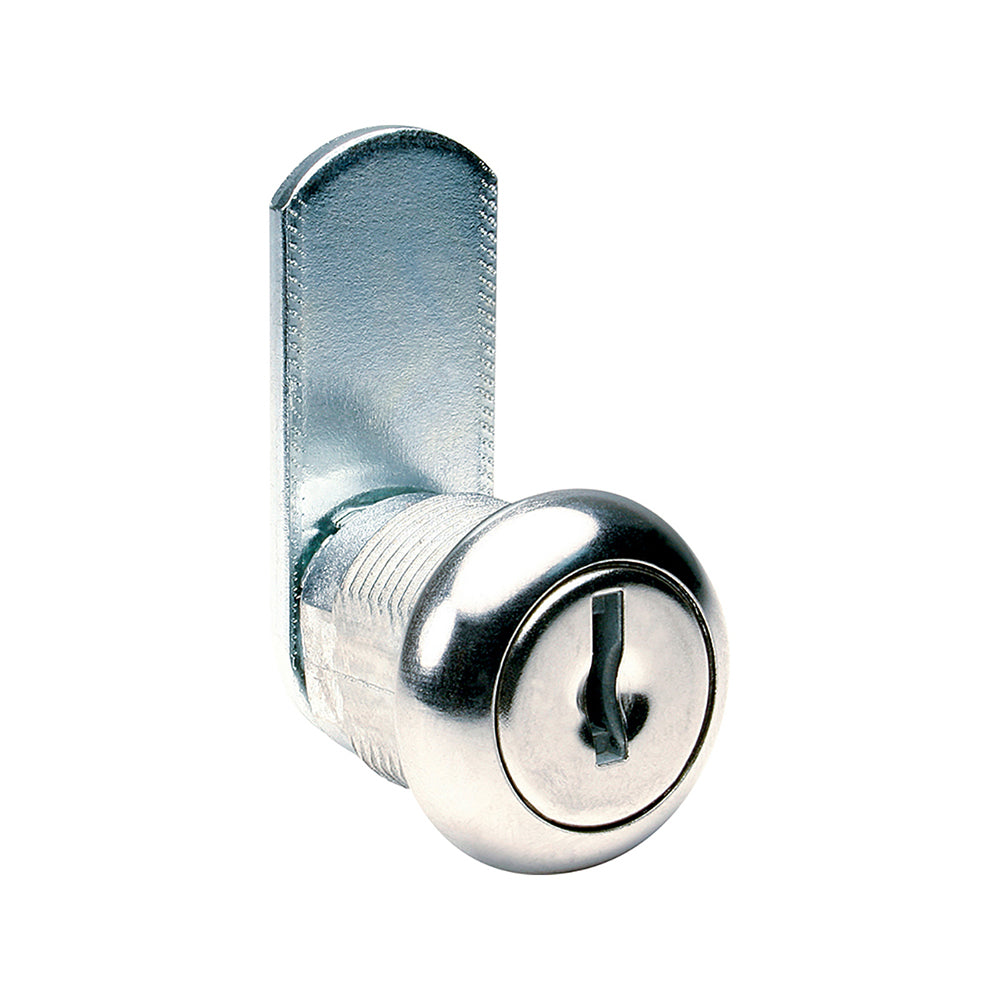

CompX Fort Cam lock, 5/8″ – MFW23058
CompX Fort Cam lock, 5/8″ – MFW23058
Prices are subject to change without notice.
CompX Fort disc tumbler cam lock with 5/8" cylinder length, 90 and 180 degree key rotation, 3/4" mounting hole, stainless steel finish, various keying options
Product Overview
Application
For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length.
Operation
90° and 180° clockwise and counter clockwise rotation, provided with parts for six different functions.
Keying
Will key together with all other CompX Fort flat key style locks using K54G key blank.
Packaging
Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. 180 degree and 90 degree stop cam, Wonder washer and two spline fillers.
