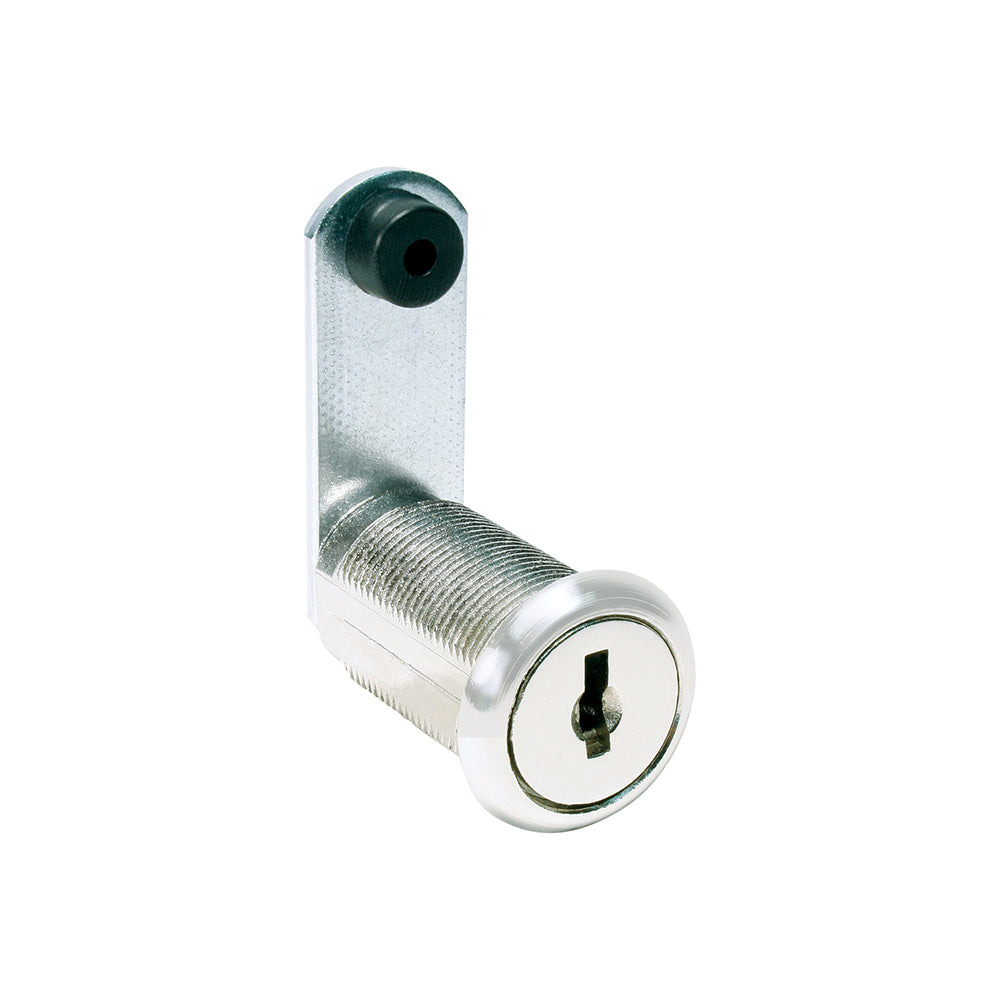

CompX National Disc tumbler cam lock, 1-3/4″ – C8060

CompX National Disc tumbler cam lock, 1-3/4″ – C8060

$25.00 CAD
$25.00 CAD
Sale Sold out
Shipping calculated at checkout.

CompX National disc tumbler cam lock with 1-3/4" cylinder length, 90 and 180 degree CW and CCW rotation, 3/4" mounting hole. Available in multiple finishes and keying options.

Technical Specifications

Cylinder Length Size: 1-3/4"
Key Rotation: clockwise/counterclockwise
Keying: KA
Max Material Thickness: 1-7/16
Type of Mounting: flush, lipped overlay, overlay

Product Overview

Application

For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.

Operation

Choice of either 90° or 180° cam turn. Key removable in both locked and unlocked positions.

Keying

Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
