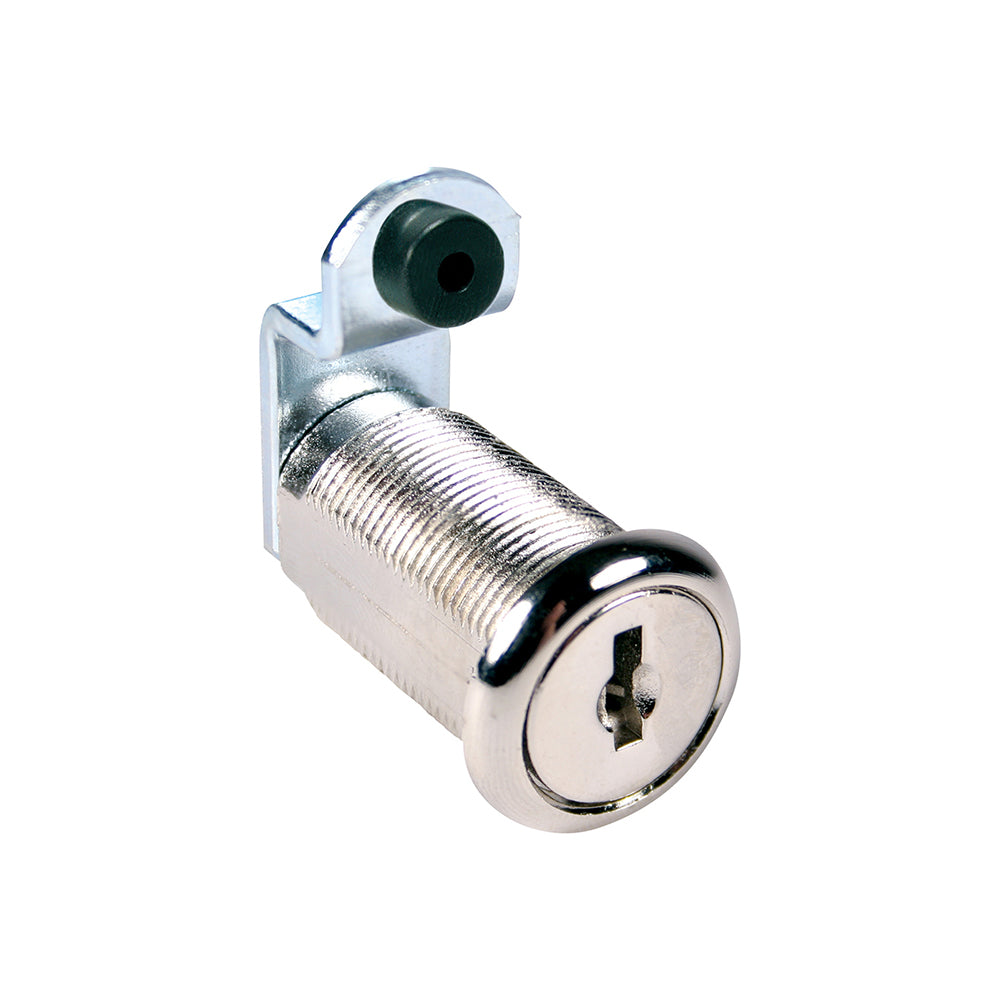

CompX National Disc tumbler cam lock, 1-7/16″ – C8055
CompX National Disc tumbler cam lock, 1-7/16″ – C8055
Regular price
$25.00 CAD
Regular price
Sale price
$25.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Prices are subject to change without notice.
CompX National disc tumbler cam lock with 1-7/16" cylinder length, 90 degree CW rotation, 3/4" mounting hole. Available in multiple finishes and keying options.
Technical Specifications
Cylinder Length Size: 1-7/16"
Key Rotation: clockwise
Keying: KA
Max Material Thickness: 1-1/8
Type of Mounting: flush, lipped overlay, overlay
Product Overview
Application
For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
Operation
90° cam turn on all locks. Key removable in both locked and unlocked positions.
Keying
Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
