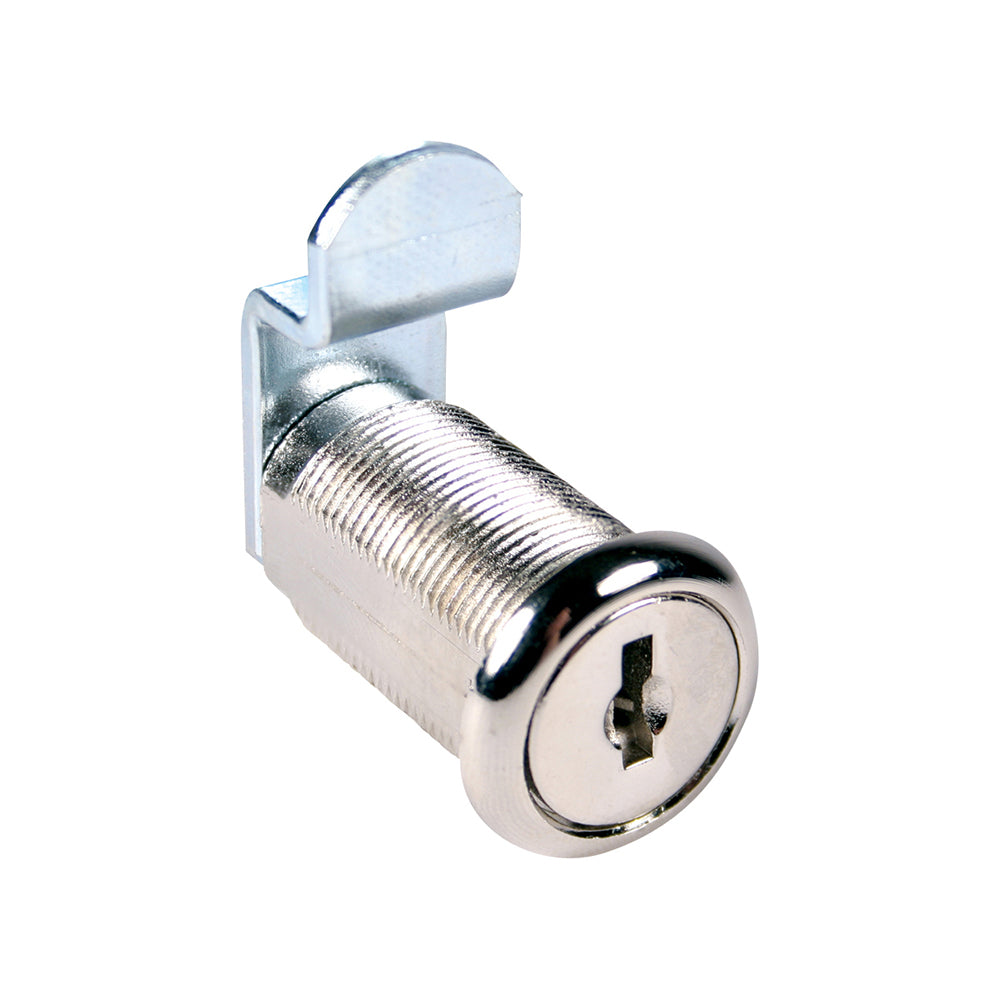

CompX National Disc tumbler cam lock, 5/8″ – C8052 -KD

CompX National Disc tumbler cam lock, 5/8″ – C8052 -KD

$25.00 CAD
$25.00 CAD
Sale Sold out
Shipping calculated at checkout.

Prices are subject to change without notice.

Technical Specifications

Cylinder Length Size: 5/8"
Key Rotation: clockwise
Keying: KA
Max Material Thickness: 15/64
Type of Mounting: flush, lipped overlay, overlay

Product Overview

Application

For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.

Operation

90° cam turn on all locks. Key removable in both locked and unlocked positions.

Keying

Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.

Packaging

Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately. See page 22 of CompX National STOCK LOCKS catalog.
