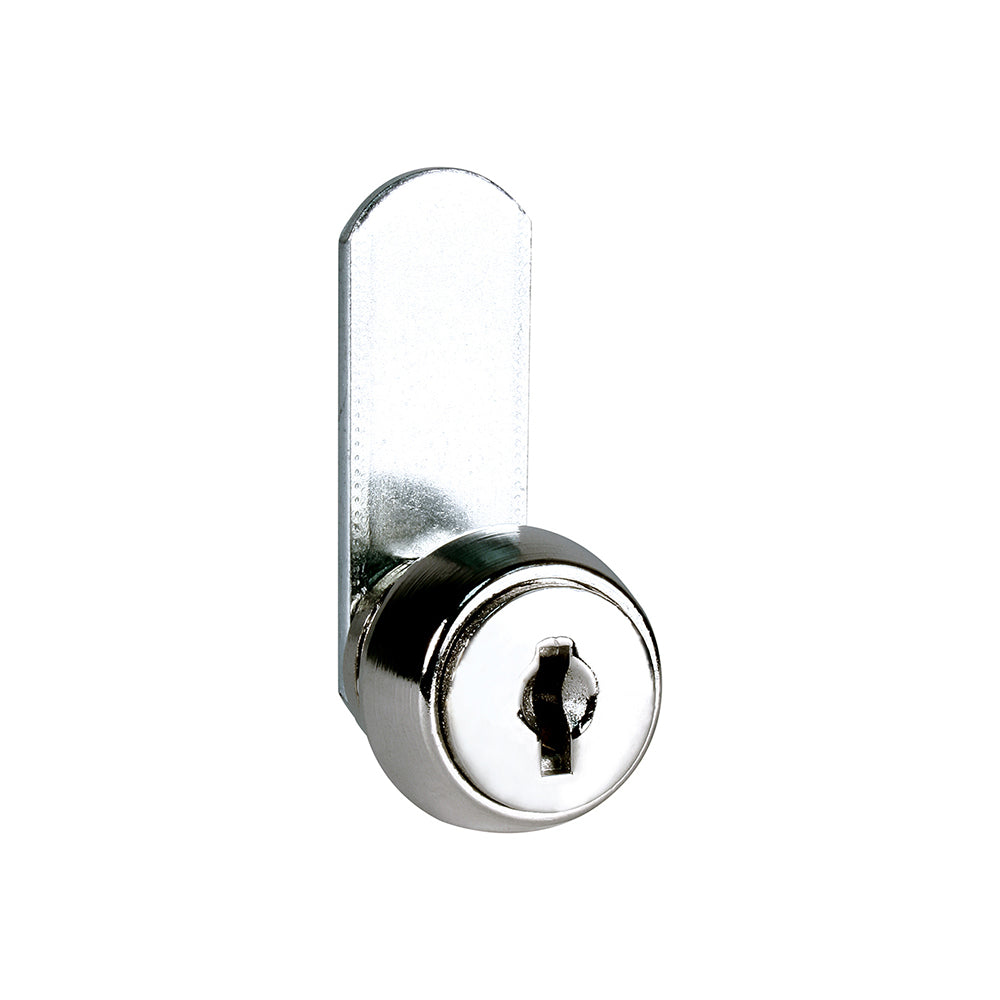

CompX National Disc tumbler cam lock, 7/16″ – C8051 KA-C413A

Prices are subject to change without notice.

CompX National disc tumbler cam lock with 7/16" cylinder length, 90 degree CW rotation, 3/4" mounting hole. Available in multiple finishes and keying options.

Application

For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.

Operation

90° cam turn on all locks. Key removable in both locked and unlocked positions.

Keying

Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
