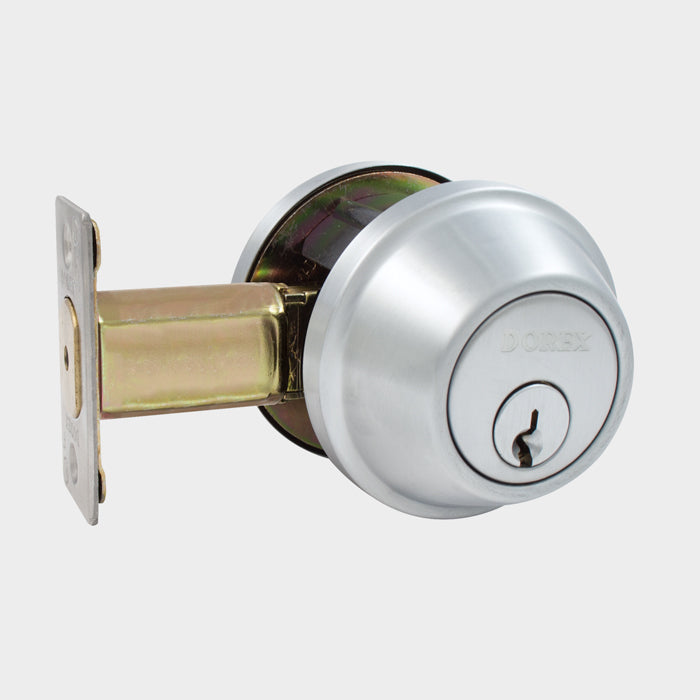

CX5 high-security TRIIO. TLA Heavy Duty Deadbolt, Grade 2

Heavy Duty Deadbolt, Grade 2

The CX5 enhanced DOREX TLA is a versatile heavy duty, Grade 2 quality, fire rated, security deadbolt for moderate commercial and heavy-duty residential traffic applications.

With its discreet and classic looks, the CX5 enhanced DOREX TLA security deadbolt can fit into any commercial or residential application.

• Conforms to ANSI/BHMA A156.5 Grade 2
• cULus Listed, 3hr Fire-rating
• For doors 1 3⁄8–1 3⁄4″ (35–44.5 mm) thick
• 2 3⁄4″ (70 mm) backset
  Adjustable 2 3⁄8″ or 2 3⁄4″ (60 mm or 70 mm) backset available
• Deadbolt with hardened steel security pin and 1 in (25.4 mm) throw
• Free spinning cylinder collar and steel security shield for enhanced protection from physical attacks
• Fits common 2 1⁄8″ (54 mm) and 1 1⁄2″ (38 mm) door preparations
• Concealed mounting screws
• CX5 inside: 6-pin 9125 or 9125T cylinder in steel housing, CX5 keyway (0-bitted)
• Key blanks sold separately
• Installation Not Included
• Call or message us today for a FREE estimate on installation.
  Metro Lock & Key
  506-384-LOCK (5625)
  contact@metrolockkey.ca
  www.metrolockkey.ca
• Does Not Include Installation
  Available Keyed Alike, Master keyed at an additional charge

  • Prices Subject To Change Without Notice
  • Shipping Extra
