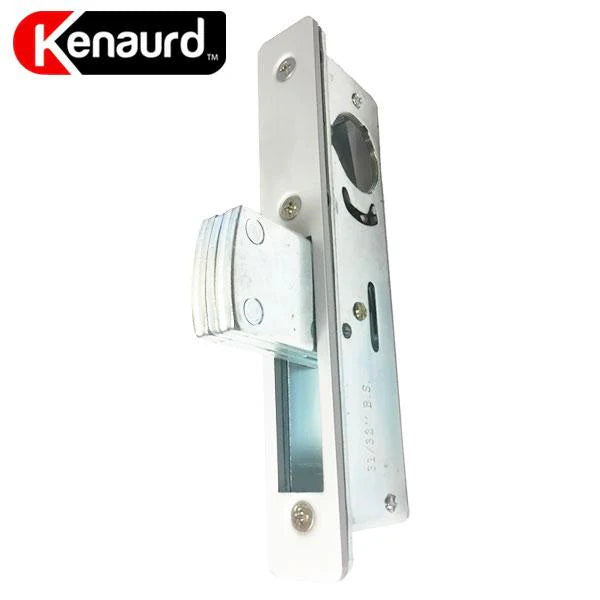

Kenaurd 1–1 1/8 Narrow Stile Deadbolt Lock Body (KNS02)

Kenaurd 1–1 1/8 Narrow Stile Deadbolt Lock Body (KNS02)

Engineered for narrow stile doors, the Kenaurd KNS02 Deadbolt Lock Body provides reliable security and versatile installation options for commercial and residential applications.

Key Features

• Backset: 1–1/8" (28.6 mm)

• Handing: Easily adjustable for left-hand or right-hand doors

• Case Material: Zinc-plated steel lock body

  • Dimensions: 7/8" W x 6" L

• Deadbolt: 5/8" wide, 1–3/8" throw

• Cylinder Compatibility: Accepts 1" to 1–1/8" mortise thumbturns and mortise lock cylinders with Adams Rite (A/R) cams (cylinder not included)

• Faceplate: 1" x 6–7/8" (25.4 mm x 174.6 mm)

• Strike: Standard strike included for flush or near-flush door installations

• Package Includes: Individually boxed lock body with strike plate, 2 faceplates, and mounting screws

• Bulk Option: Available in 25-count carton/box

• Accessories: Cylinders, paddles, and handles sold separately

Installation

• Not included

• Contact us for a FREE installation estimate

📞 Metro Lock & Key
506-384-LOCK (5625)
✉️ contact@metrolockkey.ca
🌐 www.metrolockkey.ca

Additional Information

• Prices subject to change without notice

• Shipping extra
