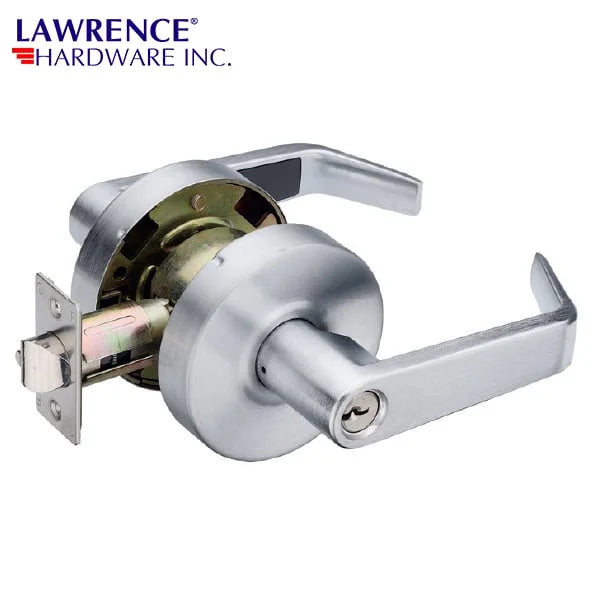

Lawrence Hardware Silver Grade 2 Lever Lockset LH5307 L

• Does Not Include Installation
  Available Keyed Alike, Master keyed, Keyed Different
• Call or message us today for a FREE estimate on installation.
  Metro Lock & Key
  506-384-LOCK (5625)
  contact@metrolockkey.ca
• Prices are subject to change without notice.
• www.metrolockkey.ca

SKU: LH5307

• Finish: US32D
• Part Number: LH5307
• Function: Storeroom
• THE 5300 SERIES CYLINDRICAL LEVERSET IS ENGINEERED TO MEET ADA REQUIREMENTS AND CERTIFIED UNDER
  ANSI A156.2 FOR GRADE 2 WITH LIFE FREQUENCY EXCEEDING 400,000 CYCLES.
• SUITABLE FOR USE ON ALL DOORS IN PUBLIC BUILDINGS, HOUSES, COMMERCIAL BUILDINGS, HOTELS AND HOSPITALS.
• PRODUCT IS CERTIFIED BY THE UNDERWRITERS LABORATORIES (UL AND ULC LISTED) AND IT IS DESIGNED TO
  OPERATE FOR MORE THAN 3 HOURS IN CASE OF FIRE.
• THE 5300 SERIES IS USER FRIENDLY FOR CHILDREN AND THE DISABLED.

Specifications

Applications: For offices, schools, hospitals, apartments, hotels / motels and other publics buildings.

Door Thickness: 1-3/8″ to 3/4″ (35mm to 45mm)

Backset: 2-3/8″ (60mm) or 2-3″ (70mm) standard.

Front: Brass, Bronze: 2-1/4″x1-1/8″ optional adjustable for Flat or Beveled doors 1/8″ in 2″.

Strike: Brass, Bronze, ASA strike Standard Full Lip

Roses: Brass or Bronze Roses.

Handing: Universal Non handed

Latchbolt: Brass ½ throw as standard

Keys: 2pcs, Solid Brass

Cylinder: Brass, Schlage 6 pin Keyway standard. Others available upon request.

Master Keying: Can be master keyed or grand master keyed.

Wheeling: Free wheeling mechanism available on all keyed locks.

Listing: UL & ULC Listed for use on fire Doors (3 Hours Rated)
