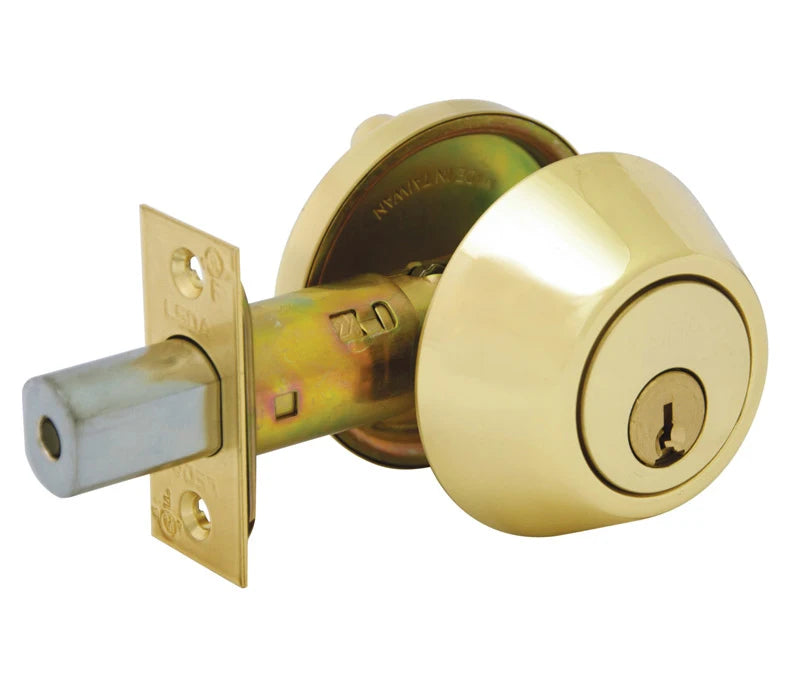

LSDA Grade 3 Single Cylinder Deadbolt – Weiser Keyway, Removable Cylinder

LSDA Grade 3 Single Cylinder Deadbolt – Weiser Keyway, Removable Cylinder

The LSDA Grade 3 Brass Deadbolt with removable cylinder provides durable, residential-grade security for standard doors. Featuring a thumb-turn design and a 1" x 2-1/4" faceplate, this deadbolt offers a reliable locking solution that is both versatile and secure.

Equipped with a 6-pin cylinder keyed 5-pin WR5 KA4, this lock allows for easy rekeying and is compatible with master key systems, making it ideal for homes, rental properties, or retrofits. Its adjustable backset and field-reversible design make installation simple and adaptable for most residential doors. Built to ANSI/BHMA 156.2 Series 4000 Grade 3 standards and featuring a UL-listed latch for 3-hour fire doors in the USA and Canada, it ensures both safety and performance.

🔒 Key Features

• Function: Single Cylinder Deadbolt

• Design Style: Thumb Turn

• Grade: ANSI/BHMA Grade 3 – Residential

• Deadbolt: 1" x 2-1/4" Faceplate, Adjustable Backset

• Keyway: Weiser E / WR3, 6-Pin Cylinder Keyed 5-Pin

• Handing: Field Reversible

• Door Prep: 1-1/2” - 2-1/8” diameter bore; 1” crossbore

• Door Thickness: 1-3/8" – 1-3/4"

• Strike: 1-1/8" x 2-3/4"

• Material: Stainless Steel, Zinc, Steel

• Standards: ANSI/BHMA 156.2 Series 4000 Grade 3; UL Listed for 3-hour fire doors

🔑 Keying Options

• Keyed Alike

• Keyed Different

• Master Keyed

📦 Included in Package

• Deadbolt with 6-Pin Removable Cylinder

• Instructions & Template

• Mounting Hardware

⚠️ Installation not included.
Prices are subject to change without notice.
