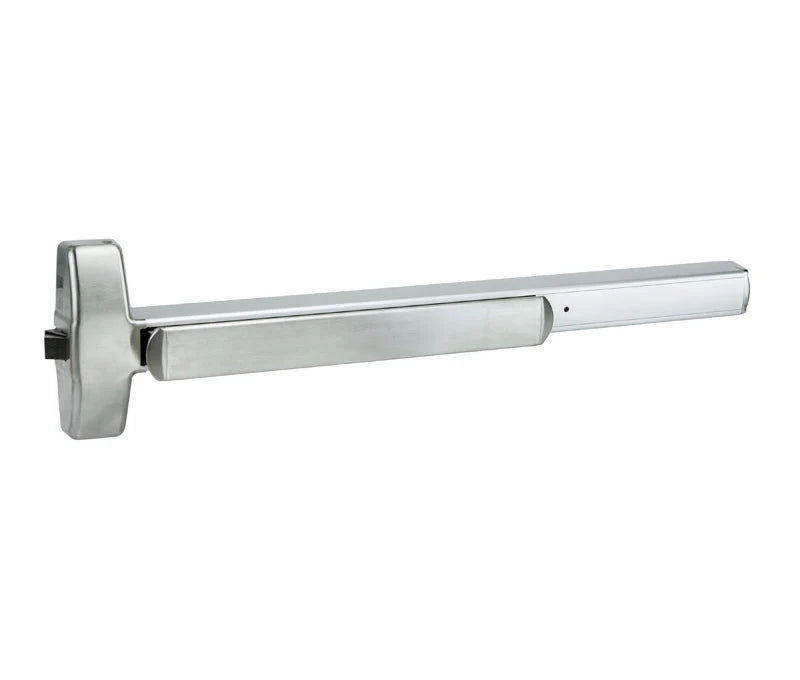

LSDA Grade 1 Rim Exit Device – Touch Bar – US32D – 36″

LSDA Grade 1 Rim Exit Device – Touch Bar – US32D – 36″

Description:
The LSDA PD9200 Series Grade 1 Rim Exit Device is engineered for heavy-duty commercial applications where safety, durability, and code compliance are essential. Designed for interior and exterior outswinging doors, this touch bar exit device delivers reliable emergency egress in high-traffic environments.

Constructed from stainless steel, brass, and extruded aluminum, the PD9200 series offers long-lasting performance and smooth operation. Certified to ANSI/BHMA Grade 1 standards and UL Listed in both the USA and Canada, this device meets rigorous safety and quality requirements.

Key Features

• Grade 1 – Heavy Duty Commercial Use

• Touch Bar Design for quick and easy egress

• Surface Rim Device with deadlocking latch

• Field Reversible Handing

• Standard Key Dogging (key provided or 5/32″ hex wrench)

• Cylinder Dogging Option Available

• Durable Construction for high-traffic environments

Specifications

• Manufacturer: LSDA

• Series: PD9200

• Device Type: Surface Rim Exit Device

• Design Type: Touch Bar

• Size: 36″

• Finish: US32D / 630 Satin Stainless Steel

• Material: Stainless steel, brass, extruded aluminum

• Latch: Rim, deadlocking stainless steel, 3/4″ throw

• Door Type: Commercial wood and hollow metal

• Stile Width: Minimum 2-7/8″

• Strike: Rim surface applied (double-door strike available)

• Handing: Field reversible

• Fire Rating: Non-fire rated

• Keying: Outside trims accept conventional mortise or rim cylinders

Standards & Certifications

• ANSI/BHMA A156.3-2008 – Grade 1

• UL Listed (USA & Canada)

Recommended Applications

Ideal for hospitals, schools, office buildings, industrial facilities, government buildings, and places of assembly, the LSDA PD9200 ensures safe and reliable egress in demanding environments.

Important Information:

• Installation not included
