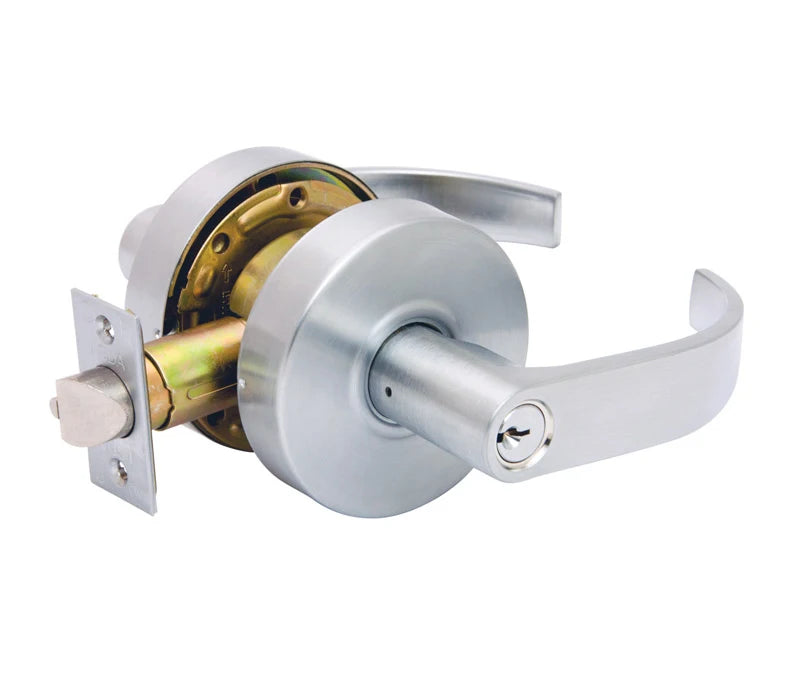

LSDA Grade 2 Classroom Lever – Calgary Clutch (US26D Satin Chrome, 6-Pin SC4 Keyway)

LSDA Grade 2 Classroom Lever – Calgary Clutch (US26D Satin Chrome, 6-Pin SC4 Keyway)

Manufacturer: LSDA
Series: 800
Design Style: Calgary (CA)
Finish: US26D Satin Chrome
Cylinder / Keyway: SC4 6-Pin KD (Schlage C compatible)
Pinning: 6-Pin, Keyed 5-Pin
Type: Cylindrical Lockset

Product Overview

The LSDA 800-Series Calgary Classroom Lever is a robust, medium-duty commercial lever designed to meet the demands of classrooms and other high-use environments. Built with durability and reliability in mind, this lever offers exceptional performance, featuring a UL-listed latch, independent return springs, and an optional clutch mechanism to resist torque and prevent lever sag. Designed to meet accessibility codes, the L-shaped lever allows for easy operation with less than 1/2" clearance between the handle and door.

Key Features

• Design Style: Calgary (CA)

• Function: Thumb turn Deadbolt

• Grade: 2 – Medium Duty Commercial / Heavy Duty Residential

• Door Prep: 2-1/8" diameter cross bore; 1" edge bore

• Door Thickness: 1-3/8" – 2"

• Handing: Field Reversible

• Industry Finish: US26D/626 Satin Chrome

• Knob/Lever: Lever

• Latch/Bolt/Backset: 2-3/4"

• Strike: ASA 4-7/8"

• Standards/Rating:

  • ANSI/BHMA 156.2 Series 4000 Grade 2

  • UL Listed for 3-hour fire doors (USA & Canada)

• Thru Bolting: Yes

• Cylinder / Keyway: SC4 6-Pin KD (Schlage C compatible)

  • Retrofit cylinders supported: LSDA C500, Ilco, GMS, Medeco, Assa, Schlage Primus, Kaba Peaks, and more

Included in the Package

• 2 Solid Brass Keys

• Installation Instructions

Important Notes

• Combinating: Keyed Different

• Installation: Not included (contact us for a FREE estimate on installation)

• Keying Options: Available keyed alike, master keyed, or keyed different

• Prices: Subject to change without notice

• Shipping: Additional charges may apply
