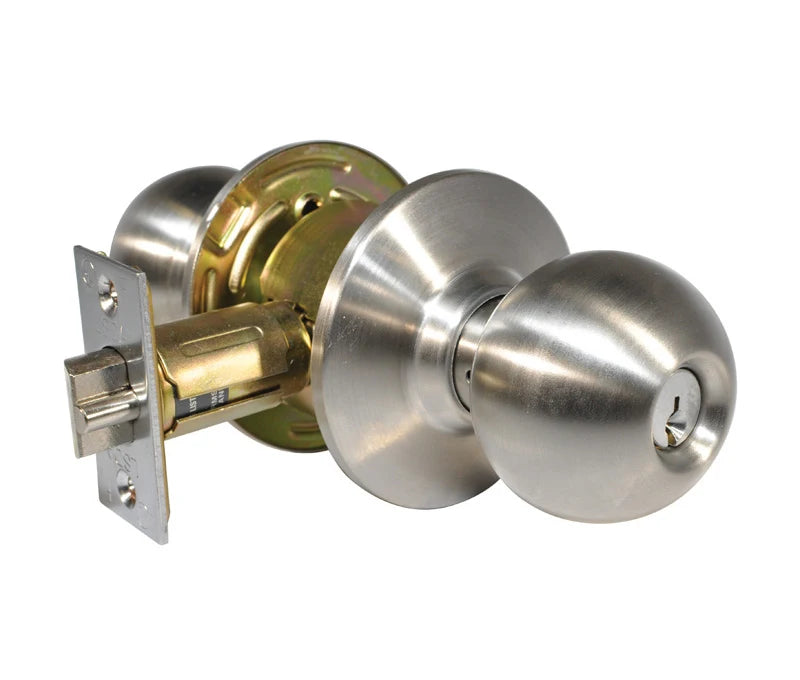

LSDA Grade 2 Entry Knob – Ball (US32D Satin Stainless Steel, 2-3/4", Weiser Keyway WR5)

LSDA Grade 2 Entry Knob – Ball (US32D Satin Stainless Steel, 2-3/4", Weiser Keyway WR5)

The LSDA 100-Series Entry Ball Knob combines reliability, versatility, and classic style for medium-duty commercial and heavy-duty residential doors. With cylindrical construction, this knob is ideal for retrofits and replacements, compatible with a wide range of high-security cylinders including LSDA C500, Ilco, GMS, Medeco, Assa, Schlage Primus, and Kaba Peaks.

Key Features:

• Design Style: Ball (B) Round

• Function: Entry (locks from inside, key-operated outside)

• Grade: 2 – Medium Duty Commercial / Heavy Duty Residential

• Door Prep: 2-1/8" diameter cross bore; 1" edge bore

• Door Thickness: 1-3/8" – 1-3/4"

• Handing: Field Reversible

• Industry Finish: US32D/630 Satin Stainless Steel

• Knob/Lever: Knob

• Latch/Backset: 2-3/4"

• Strike: ASA 4-7/8"

• Keyway: Weiser E, WR5 (WE2)

• Pinning: 6-Pin, Keyed 5-Pin

• Standards / Ratings: ANSI/BHMA 156.2 Series 4000 Grade 2

• Series: 100

• Type: Cylindrical

Included in Package:

• 2 Keys

• Installation Instructions

Additional Notes:

• Installation not included

• Available keyed alike, master keyed, or keyed different
