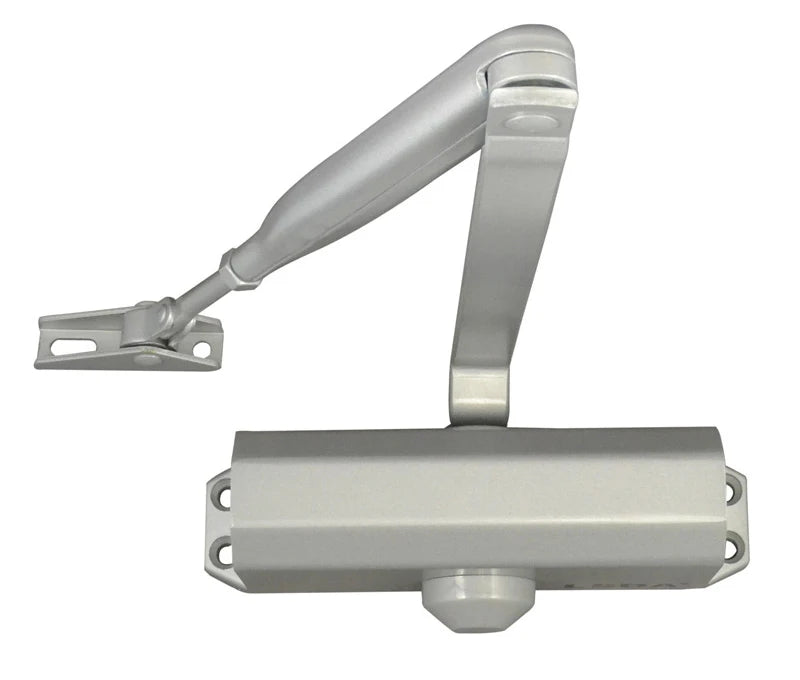

LSDA Grade 3 Door Closer – Adjustable Size 2–4, Tri-Pack (Aluminum)

LSDA Grade 3 Door Closer – Adjustable Size 2–4, Tri-Pack (Aluminum)

The LSDA DC724 Grade 3 Door Closer is designed for light-duty commercial and residential applications, providing smooth, controlled door operation at an economical price point. This adjustable size 2–4 surface-mounted closer is supplied in a Tri-Pack configuration, making it suitable for standard regular or parallel arm installations.

Key Features

• Grade: ANSI/BHMA Grade 3 – Light Duty Commercial / Residential

• Adjustable Size: 2 through 4

• Finish: 689 Sprayed Satin Aluminum

• Arm Type: Regular Arm with Parallel Bracket (Tri-Mount)

• Handing: Non-Handed

• Opening Angle: Up to 180°

• Controls: Adjustable closing speed and latch speed

Construction

• Cast aluminum body

• Heat-treated rack & pinion

• Forged steel arms

• All-temperature hydraulic oil for consistent performance

Door Capacity (Size 2)

• Maximum Door Width: 22"

• Maximum Door Weight: 88 lbs

Certifications

• Meets ANSI/BHMA A156.4 Grade 3

• UL Listed (USA & Canada)

• UL 10C Fire-Rated

Additional Information

• Installation not included

• Prices subject to change without notice
