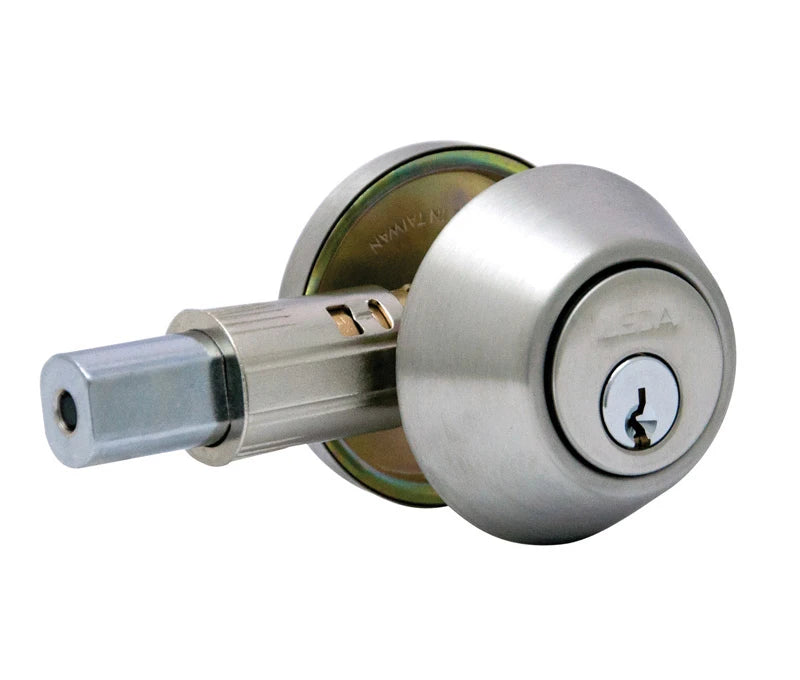

LSDA Grade 3 Single Cylinder Deadbolt – WR5 Keyway, Removable Cylinder

LSDA Grade 3 Single Cylinder Deadbolt – WR5 Keyway, Removable Cylinder

The LSDA Grade 3 Single Cylinder Deadbolt in satin stainless steel (US32D/630) provides residential-grade security with flexibility and durability. Designed with a thumb-turn style and a 1" drive-in bolt, this deadbolt is ideal for standard residential doors and meets the highest ANSI/BHMA Grade 3 performance standards.

Featuring a removable 6-pin cylinder keyed 5-pin WR5 KA4, this lock allows easy rekeying and compatibility with master key systems, making it perfect for homes, rental properties, or retrofits. The adjustable backset and field-reversible design make installation easy and adaptable.

🔒 Key Features

• Function: Single Cylinder Deadbolt

• Design Style: Thumb Turn

• Grade: ANSI/BHMA Grade 3 – Residential

• Deadbolt: 1" Drive-In, Adjustable Backset

• Keyway: Weiser E / WR5, 6-Pin Cylinder Keyed 5-Pin

• Handing: Field Reversible

• Door Prep: 1-1/2” - 2-1/8” diameter bore; 1” crossbore

• Door Thickness: 1-3/8" – 1-3/4"

• Strike: 1-1/8" x 2-3/4"

• Material: Brass, Zinc, Steel

• Standards: ANSI/BHMA 156.2 Series 4000 Grade 3; UL Listed for 3-hour fire doors

🔑 Keying Options

• Keyed Alike

• Keyed Different

• Master Keyed

📦 Included in Package

• Deadbolt with 6-Pin Removable Cylinder

• Instructions & Template

• Mounting Hardware

⚠️ Installation not included.
