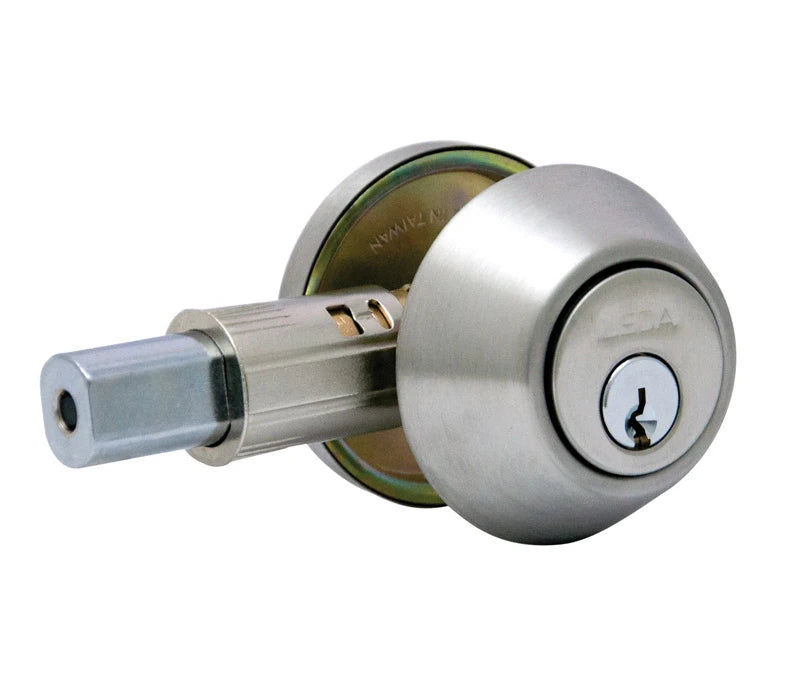

LSDA Grade 3 Single Cylinder Deadbolt – SC4 Keyway, Adjustable Drive-In

LSDA Grade 3 Single Cylinder Deadbolt – SC4 Keyway, Adjustable Drive-In

The LSDA Grade 3 Single Cylinder Deadbolt offers residential-grade security with professional durability. Designed with a thumb-turn style and a 1" drive-in deadbolt, this lock is ideal for standard residential doors, providing peace of mind and easy access control.

Constructed with a satin stainless steel finish (US32D/630) and a 6-pin cylinder keyed 5-pin SC1 KA4, this deadbolt is adjustable, field-reversible, and compatible with most residential doors. It is rated to ANSI/BHMA Grade 3 standards and features a UL-listed latch for 3-hour fire-rated doors in the USA and Canada.

🔒 Key Features

• Function: Single Cylinder Deadbolt

• Design Style: Thumb Turn

• Grade: ANSI/BHMA Grade 3 – Residential

• Deadbolt: 1" Drive-In, Adjustable Backset

• Keyway: Schlage C, 6-Pin Cylinder (Keyed 5-Pin)

• Handing: Field Reversible

• Door Prep: 1-1/2” - 2-1/8” diameter bore; 1” crossbore

• Door Thickness: 1-3/8" – 1-3/4"

• Strike: 1-1/8" x 2-3/4"

• Material: Brass, Zinc, Steel

🔑 Keying Options

• Keyed Alike

• Keyed Different

• Master Keyed

📦 Included in Package

• Deadbolt with 6-Pin Cylinder

• Instructions and Template

• Mounting Hardware

⚠️ Installation not included.
